Introduction

Axiomtek’s rBOX series of DIN-rack fanless embedded systems is suitable for intelligent computing and communication solutions in critical environments, such as power plant automation, facility monitoring systems, and intelligent transportation systems. Built for rugged environments, the rBOX series supports extra low power Intel® Atom™ processors Z510PT and Z520PT with extended temperature range of -40°C to 70°C for use in extreme operating environments. The fanless design increases reliability, extends MTTR, and ultimately reduces maintenance efforts. Front accessible I/O cabling is very convenient for wiring and maintenance. The rBOX series features a redundant Ethernet LAN connection for greater availability and reliability. The redundant power inputs minimize the risk of data loss in the event of a single power failure. Their compact size with DIN-rail mounting allows for easy installation into control cabinets. The rBOX series meets Safety Agency requirements and have passed heavy industrial EMI/EMS testing. To streamline implementation of management applications, Axiomtek has launched AXView monitoring software package. Based on SNMP protocols, AXView makes it easy for system administrators to manage and monitor remote computers.

Advanced Features:
• Fanless operation
• Robust industrial-grade hardware design
• x86 architecture supported
• Flexible I/O expansions
• -40°C to +70°C wide temperature range
• Compact size with DIN-rail mounting
• Redundant power inputs with power failure alarm
• Meets Safety Agency requirements and complies with EMI/EMS
• Linux, Windows® CE or Windows® XP embedded supported

AXView Monitoring Software Package
To streamline implementation of management applications, Axiomtek has launch 'AXView 2010' packages for customers to build their own unique management systems easily and quickly. By importing private MIB, Axiomtek platforms with AXView could be easily integrated into standard SNMP-based management systems. Based on standard SNMP protocols, AXView contains a variety of easy-to-use management utilities, agent services and libraries.

Four Major Modules:
Libraries (DLL)
• Local Monitoring (CPU clock, FAN speed, thermal, WDT, case open, current working voltages, H.D.D.(S.M.A.R.T.), hibernation...etc.)
• Remote Monitoring (FAN speed, thermal, WDT, case open, working voltages, H.D.D. (S.M.A.R.T.), hibernation, settings... etc.)
• C/C++,C#... etc.
Management Utilities
• Local monitoring
• Remote monitoring Agent
• On-line monitoring system
- Overheating
- Fan stop
- Case open
- LAN drop
- Working voltage beyond pre-defined normal range
- USB devices changed
• Fire alarm by sending (SNMP trap & email)
Private MIB
• Easily integrates into well-known SNMP management systems

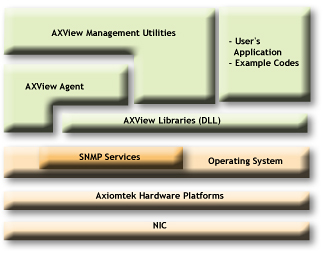

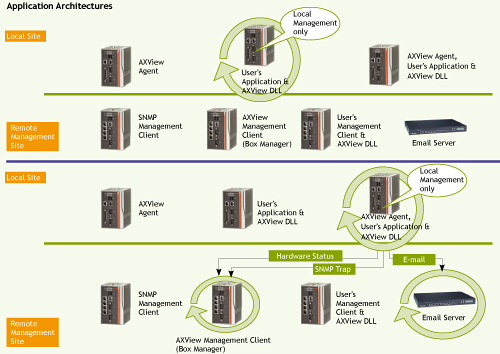

Application Diagram
