| CPU |
- 12th gen Intel® Core™ i7/i5 processor (Alder Lake-P/U series)
|
| Chipset |
|
| System Memory |
|
| BIOS |
|
| COM |
|
| USB |
- 3 x USB 3.2 Gen 2
- 1 x USB 3.2 Gen 1
- 1 x USB Type-C
|
| Ethernet |
- 1 x 10/100/1000 Mbps Ethernet (RJ-45)
|
| Display |
- 1 x HDMI 1.4b supporting 4K @ 30Hz
|
| Audio |
- 1 x Line-out (3.5 mm)
- 1 x Mic-in (3.5 mm)
|

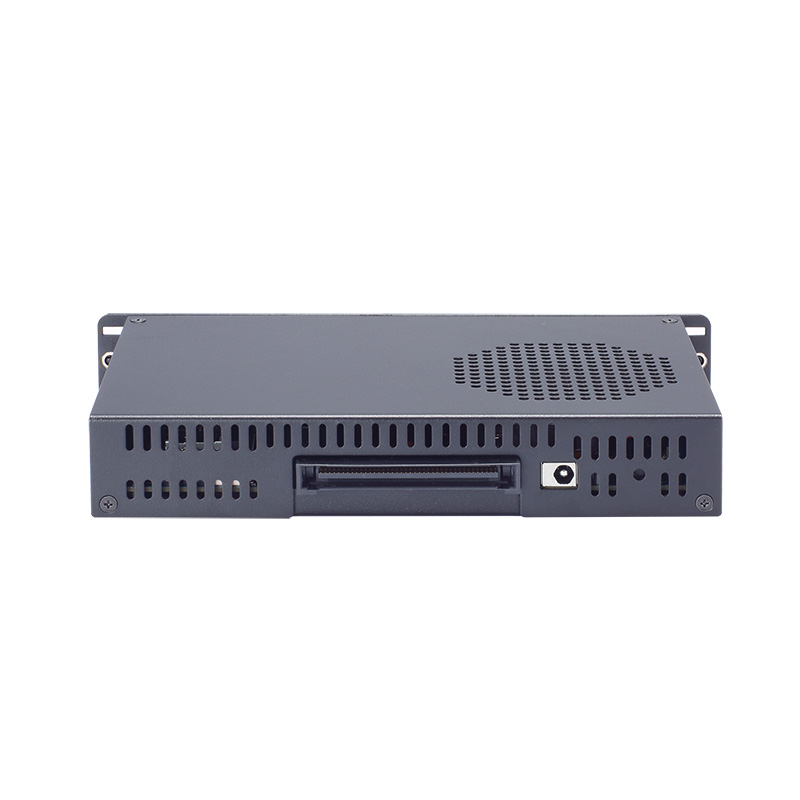

| JAE Connector |
- 1 x HDMI 2.0a supporting 4K @ 60Hz
- 1 x DisplayPort 1.2 supporting 4K @ 60Hz
- 2 x USB 2.0
- 1 x USB 3.2 Gen 1
- 1 x audio (Line-out)
- 1 x UART (TX/RX)
|
| HRS Connector |
|
| TPM |
|
| Storage |
- 1 x M.2 Key M 2280 (supporting PCIe x4 and SATA signals), with automatic SATA/NVMe switch
|
| Expansion |
- 1 x M.2 Key E 2230 for Wi-Fi
|
| Power |
|
| Watchdog Timer |
- 255 levels, 60 to 255 sec./min.
|
| Operating Temperature |
- 0°C to +45°C (+32°F to +113°F)
|
Dimensions
(W x D x H) |
- 200 x 119 x 30 mm (7.87" x 4.68" x 1.18")
|
| Weight (net/gross) |
- 1 kg (2.21 lb)/1.5 kg (3.3 lb)
|
| Certifications |
|
