| CPU |
- Intel® Core™ Ultra 7/5 processors (Meteor Lake-U)
|
| Chipset |
- SoC integrated
- AMI
- Lithium 3V/220 mAH
|
| System Memory |
- 2 x 262-pin DDR5-5600 SO-DIMM
|
| SDM Edge connector |
- 1 x HDMI 2.1
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen 2 x1
- 1 x 1GbE LAN
- 1 x Serial TX/RX
- 1 x I2C
|

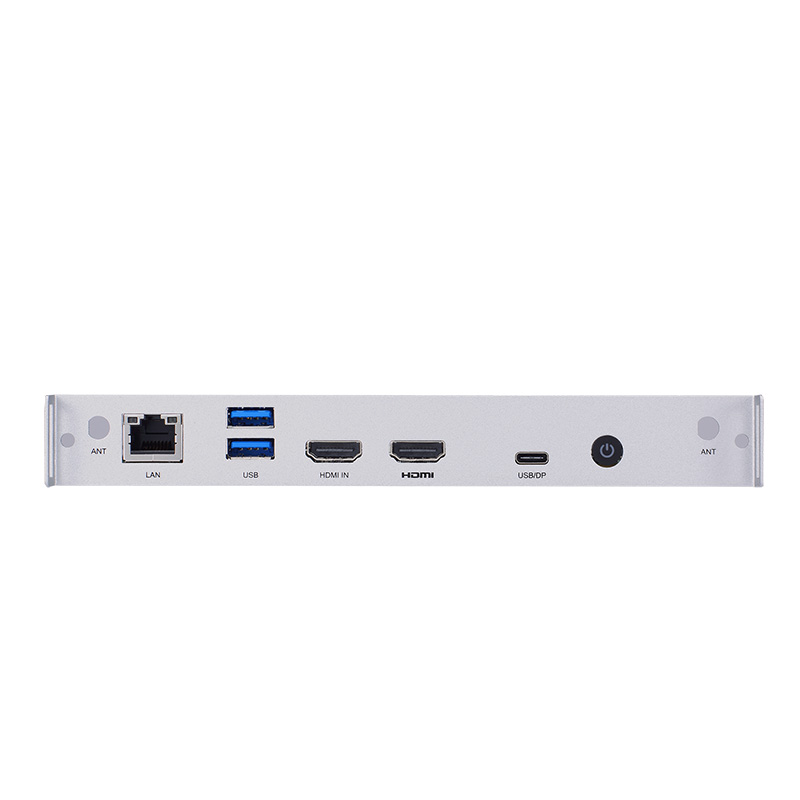

| I/O |
- 1 x HDMI output 2.1 (8K @ 60Hz)
- 1 x HDMI input 2.0 (4K @ 60Hz)
- 1 x DisplayPort via Type-C (8K @ 60Hz)
- 1 x 2.5GbE LAN (Intel® I226V)
- 2 x USB 3.2 Gen 2 Type-A
- 1 x USB 3.2 Gen 2 Type-C
- 1 x PoE LAN (optional; 72W power input)
|
| Storage |
- 1 x M.2 Key M 2280 slot (PCIe x4 + SATA signal)
|
| Expansion |
- 1 x M.2 Key E 2230 slot for Wi-Fi 7/6E and Bluetooth 6.0/5.2
|
| Power Input |
- Through SDM golden finger
- +12V and +3.3VSB
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Dimensions |
|
| Weight (net/gross) |
|
| Board Thickness |
|
| Operation Humidity |
- 10% to 95% relative humidity, non-condensing
|
| Operating Temperature |
- 0°C to +55°C (+32°F to +140°F)
|
