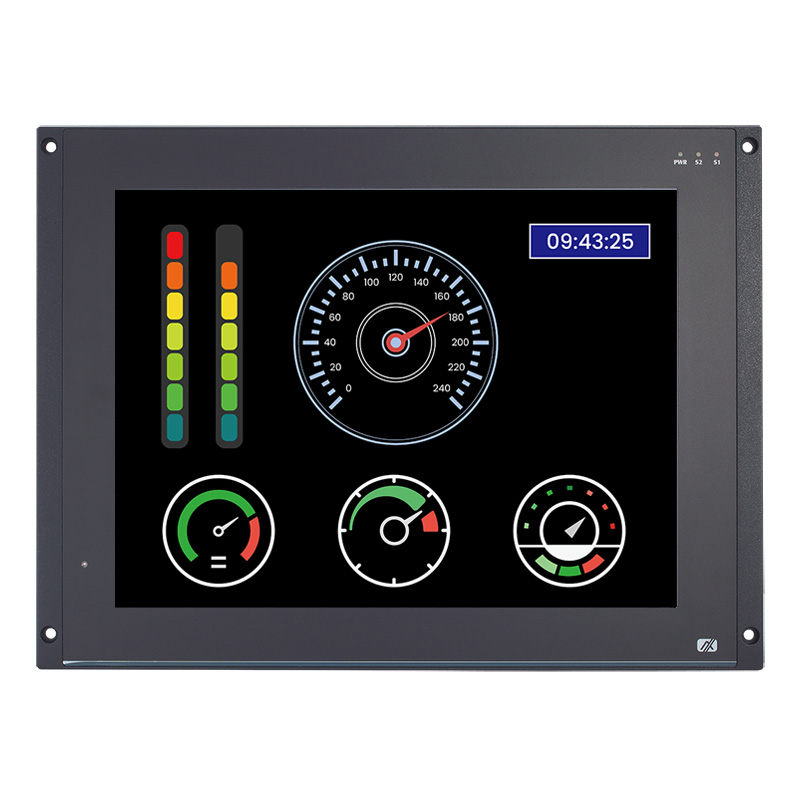

| LCD Panel |
- 15" TFT LCD
- 800 nits
- 1024 x 768 pixels
|
| CPU |
- Intel® Atom® processor E3845 1.91 GHz (Bay Trail)
|
| Chipset |
|
| System Memory |
|
| BIOS |
|
| COM |
- 2 x Isolated M12 A-coded RS-232/422/485 (isolation level 1.5kV)
|
| USB |
- 1 x M12 A-coded USB 2.0 (2 port signal)
|
| Ethernet |
- 2 x Isolated M12 X-coded GbE (isolation level 1.5kV)
|
| Display |
|
| Audio |
- 1 x DB15 audio line-in, mic-in, speaker-out or line-out
|
| CANbus |
- 1 x Isolated DB9 CANbus (isolation level 1.5kV)
|
| DIO |
- 1 x Isolated terminal block DIO (6-in/2-out, isolation level 1.5kV)
|
| Storage |
|
| Expansion |
- 2 x PCI Express Mini Card slot (slot2 for mSATA use only)
|
| Others |
- Auto-dimming for different environments
|
| Touchscreen |
- 5-wire resistive touchscreen
|
| Front Bezel |
- IP65-rated aluminum front bezel and IP40-rated rear protection
|
| Power Supply |
- 1 x M12 A-coded DC-in
- Typical 24 to 110 VDC
- EN 50155 S3 20ms power interruption protection
|
| Power Comsumption |
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Operating Temperature |
- -25°C to +70°C (-13°F to +158°F)
|
| Relative Humidity |
- 10% - 95% @ +40°C, non-condensing
|
| Vibration |
|
| Dimensions (W x D x H) |
- 400 x 61.5 x 300 mm (15.75" x 2.42" x 11.81")
|
| Weight (net/gross) |
- 4.03 kg (8.89 lb) / 6.43 kg (14.18 lb)
|
| Certifications |
- CE/FCC Class A
- EN 50155 compliant
|
| EOS |
- Windows® 10, Windows® 10 IoT, Windows® 7, WES 7
|
| Mounting |
|
